STA 500 Hybrid Truck Bed

About the STA 500 Hybrid Truck Bed

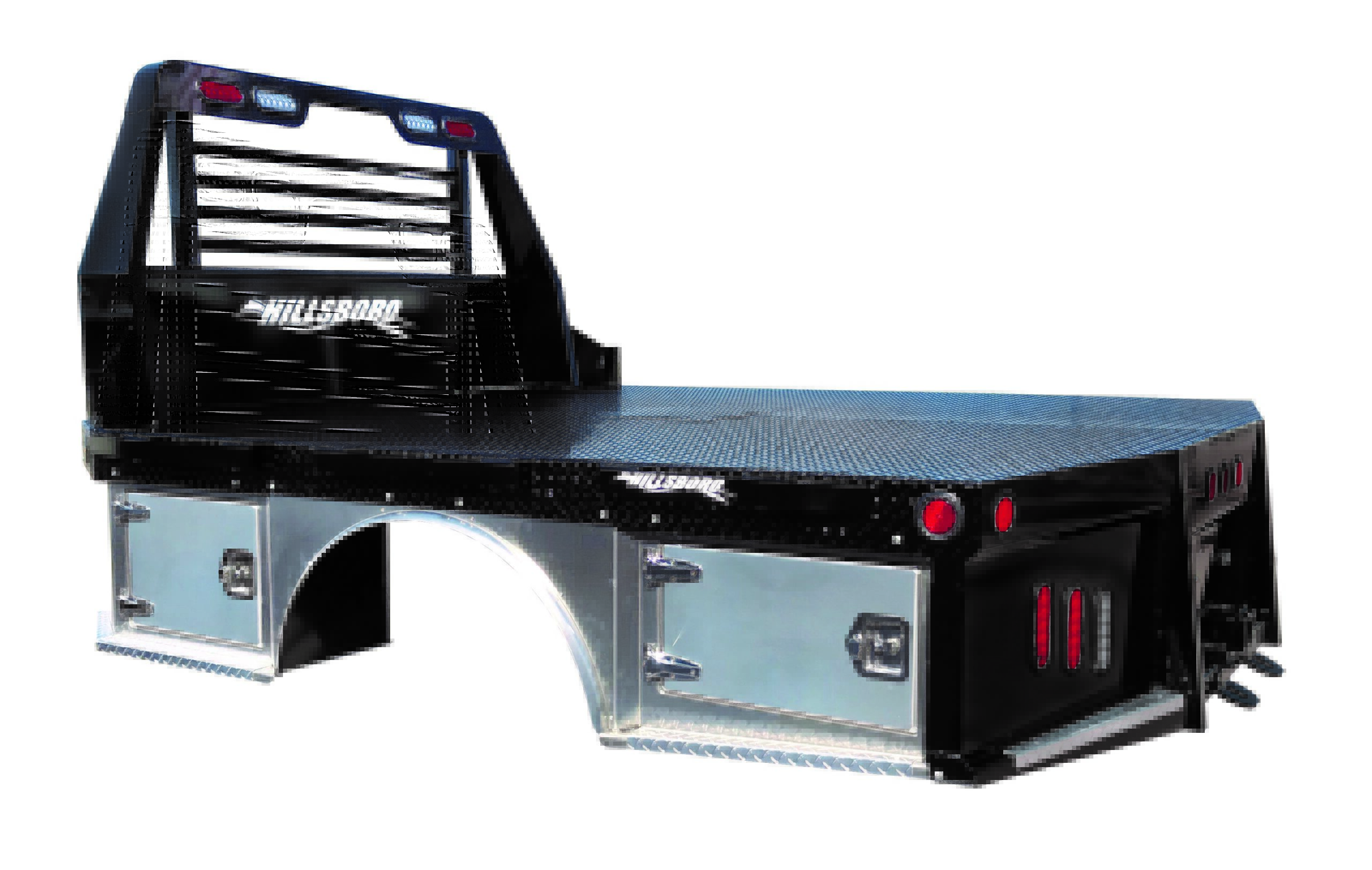

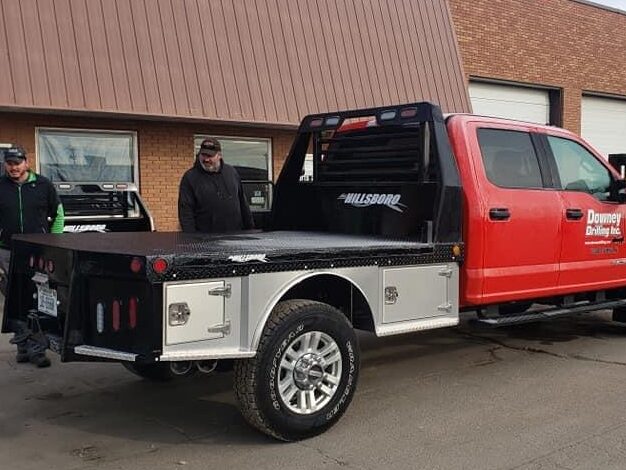

Can’t decide between aluminum and steel for your bed? The Hillsboro STA 500 Hybrid Truck Bed offers the best of both worlds, combining a tough steel body with an efficient aluminum skirt. This aluminum-skirted bed provides corrosion-resistance in the areas most often impacted by rust and rot on a typical skirted bed. This flatbed’s aluminum skirt with toolboxes provide convenient storage and protection for your equipment. A two-year limited warranty accompanies this STA 500 bed.

Specifications

Single – Short Bed Ford RAM GM
Dimensions 80″ W x 86″ L 80″ W x 86″ L 80″ W x 86″ L
Weight 1010 lbs 1010 lbs 1010 lbs
Cab-Axle 40″ 37″ 42″
Frame Width 38″ 42″ 42″
Headache Rack 40″ 36.5″ 36.5″
Part # 78310 78311 78312

Single – Long Bed Ford RAM GM
Dimensions 80″ W x 102″ L 80″ W x 102″ L 80″ W x 102″ L
Weight 1140 lbs 1130 lbs 1190 lbs
Cab-Axle 56″ 58″ 56″
Frame Width 38″ 42″ 42″
Headache Rack 40″ 36.5″ 36.5″
Part # 78313 78335 78314

Single – Cab Chassis Ford / RAM GM
Dimensions 80″ W x 112″ L 80″ W x 112″ L
Weight 1190 lbs 1180 lbs
Cab-Axle 60″ 60″
Frame Width 34″ 34″
Headache Rack 40″ 36.5″
Part # 78315 78316

Dual – Long Bed Ford RAM GM
Dimensions 96″ W x 102″ L 96″ W x 102″ L 96″ W x 102″ L
Weight 1210 lbs 1210 lbs 1210 lbs
Cab-Axle 56″ 58″ 56″
Frame Width 38″ 42″ 42″
Headache Rack 40″ 36.5″ 36.5″
Part # 78330 78336 78331

Dual – Cab Chassis Ford / RAM GM
Dimensions 96″ W x 112″ L 96″ W x 136″ L
Weight 1270 lbs 1440 lbs
Cab-Axle 60″ 84″
Frame Width 34″ 34″
Headache Rack 40″ 40″
Part # 78332 78334

Features

LED Lights

Signal to your neighbors on the road using six stop, turn & tail lights, four backup lights and LED clearance and side-marker lights.

Epoxy Primer and Black Polyurethane Paint

Improve your bed’s service life while providing enhanced aesthetics.

1/8″ steel treadplate floor

Reduce the risk of skidding or slipping in your bed.

Headache Rack with 1 ¼” Square Tube Louvers

Transport large items while keeping yourself, your passengers and other drivers safe.

30K Gooseneck Ball Plate with Flush Mount Cover

Pull a trailer with no difficulties using our gooseneck trailer hitch.

5” Structural Channel Long Sills and 2 ½” Crossmembers

Increases the strength and capacity of your bed.

Board holders

Front board holders take your storage to a new level.

Sealed wiring harness

Avoid the dangers of wire damage using our automotive-grade wiring harness with plug-in connections.

Dual tag lights

Stay visible, no matter the angle or direction.

Tapered rear with step

Receive better clearance for towing and easier access to your bed.

Filler neck mounting bracket with fuel-fill knockout

Make your installation quick and easy.

25K rated 2 ½” receiver tube

Tow heavy loads with safety and ease.

Toolboxes with EPDM closed-cell foam seal

Weather-proof your truck, right down to your toolboxes.

.125 aluminum corrosion zone

Low-maintenance 125 aluminum skirt and toolboxes eliminate the risk of corrosion and hinges freezing up.

Tapered front on 96” wide dual-wheel beds

Lead with a more aerodynamic and attractive front.
