3000 Series Aluminum Truck Bed

About the 3000 Series Aluminum Truck Bed

The Hillsboro 3000 Series Aluminum Truck Bed adds a new headache rack and fold-down sides with slam latches to a tried-and-true design. This bed carries innovative features like an extruded aluminum floor to make sure your truck stays strong and beautiful after years of heavy use, and we’re so confident in its quality that we back it with a three-year warranty.


Single Rear Wheel Short Bed Long Bed Cab Chassis
Dimensions: 81″W x 86″L 81″W x 102″L 81″W x 112″L
Frame Width: 38″ or 42″ 38″ or 42″ 34″
Cab-Axle: 37″-42″ 56″-58″ 60″
Weight: 567 lbs 630 lbs 646 lbs
Part #: 77005 77006 77007

Dual Rear Wheel Short Bed Long Bed Cab Chassis Cab Chassis
Dimensions 96″W x 84″L 96″W x 102″L 96″W x 112″L 96″W x 136″L
Frame Width: 38″ or 42″ 38″ or 42″ 34″ 34″
Cab Axle: 37″-42″ 56″-58″ 60″ 84″
Weight: 611 lbs 680 lbs 698 lbs 790 lbs
Part #: 77015 77016 77017 77018


30K gooseneck ball plate with flush-mount cover

2 5/16” 30k ball included.

3″ Aluminum I-beam crossmembers

With approximate 16″ spacing.

Aluminum extruded floor

Do your worst to your bed because this high-strength aluminum extruded floor is built to last.

HD 6” extruded rubrail with fold-down sides and slam latch

Prevent unnecessary road damage on your trailer.

Adjustable-height headache rack with square tube louvers

Modify your rack to better protect cab passengers.

Treadbrite tailboard

Turn heads as you drive down the road with this stylish addition.

4” x 2” tube steel long stills

Adjust these sills to a 34”, 38” or 42” frame.

LED lights

Signal to your neighbors on the road using six stop, turn & tail lights, four backup lights and LED clearance and side-marker lights.

Sealed wiring harness

Avoid the dangers of wire damage using our installed harness with plug-in connections.

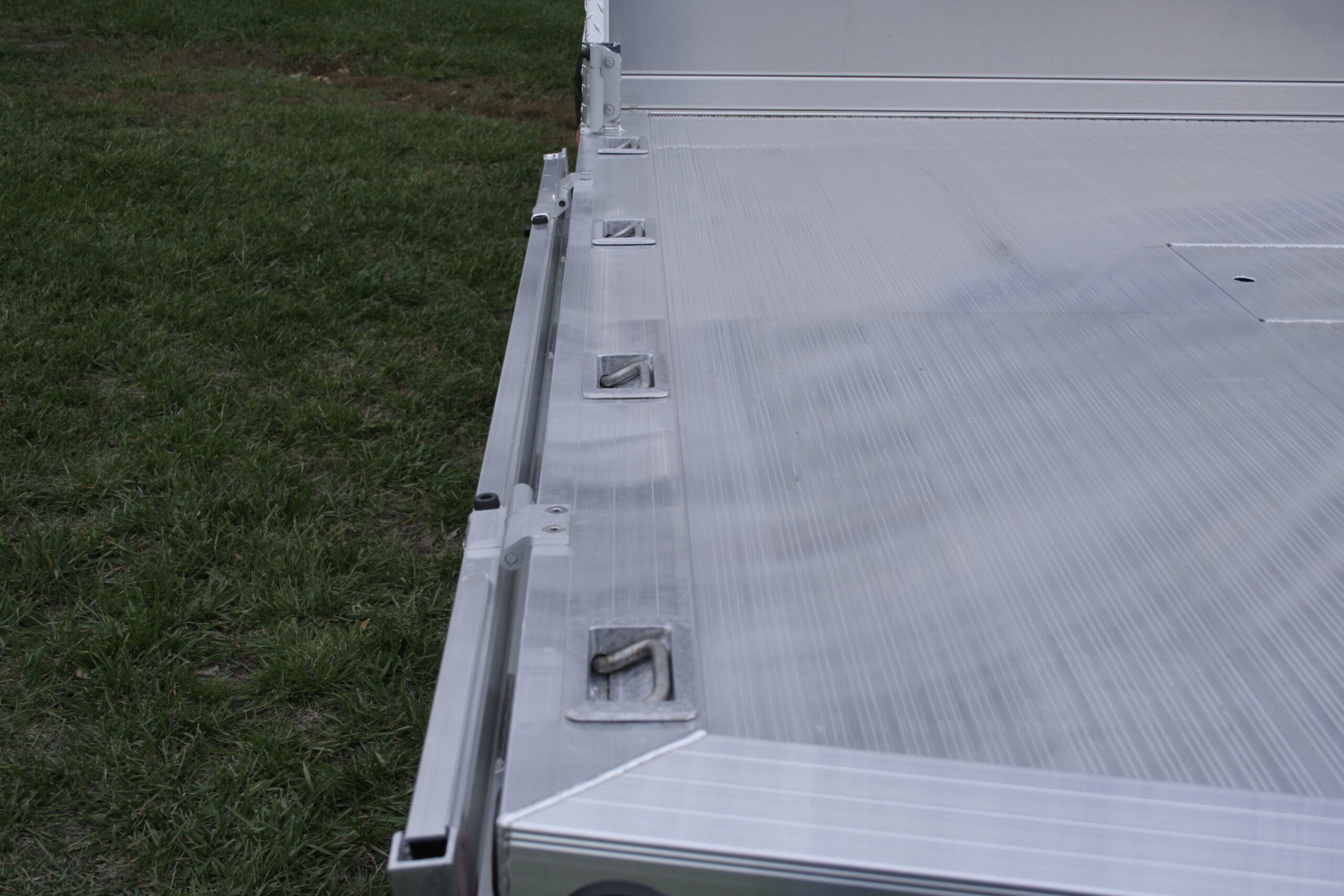

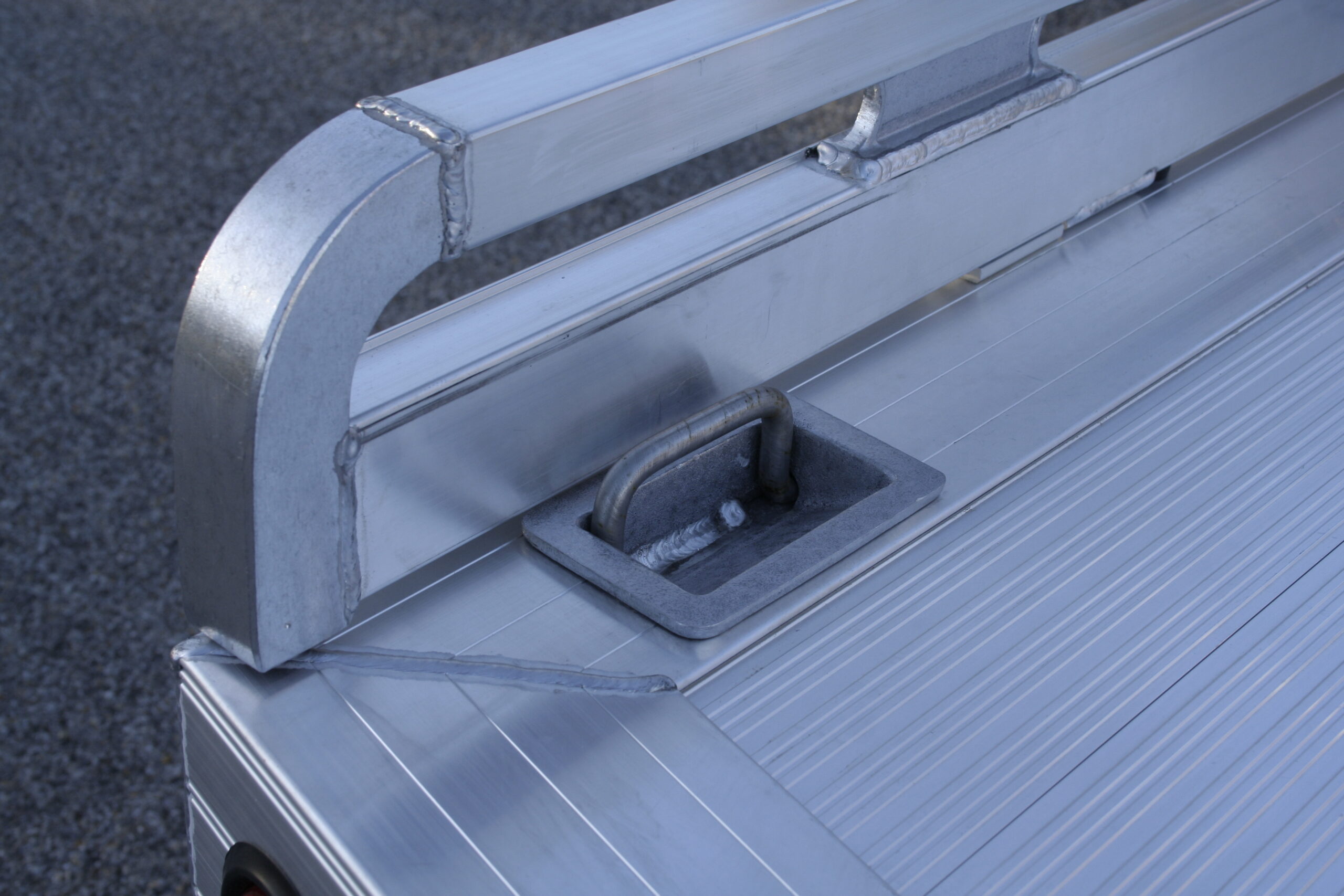

Recessed stainless steel flip-up tie-downs

Secure your cargo without the added bulk of standard tie-downs.

Tapered rear with step

Receive better clearance for towing and easier access to your bed.

Tapered front on 96” wide dual-wheel beds

Lead with a more aerodynamic and attractive front.

25K receiver hitch with 2 ½” tube

Safely tow a heavy load with this Hillsboro hitch.

Fold-down sides with slam latch

Choose between having your sides up or down to accommodate your load.

Aluminum fuel door

Enjoy a fuel door that is built to last as long as the rest of your truck.

Factory Options
